Sphere transparency
Jump to navigation
Jump to search
Overview
set sphere_transparency is used to adjust the transparency of spheres!
set sphere_transparency, 0.5
or
set sphere_transparency=0.5, selection
Where 1.0 is invisible and 0.0 completely solid
Examples

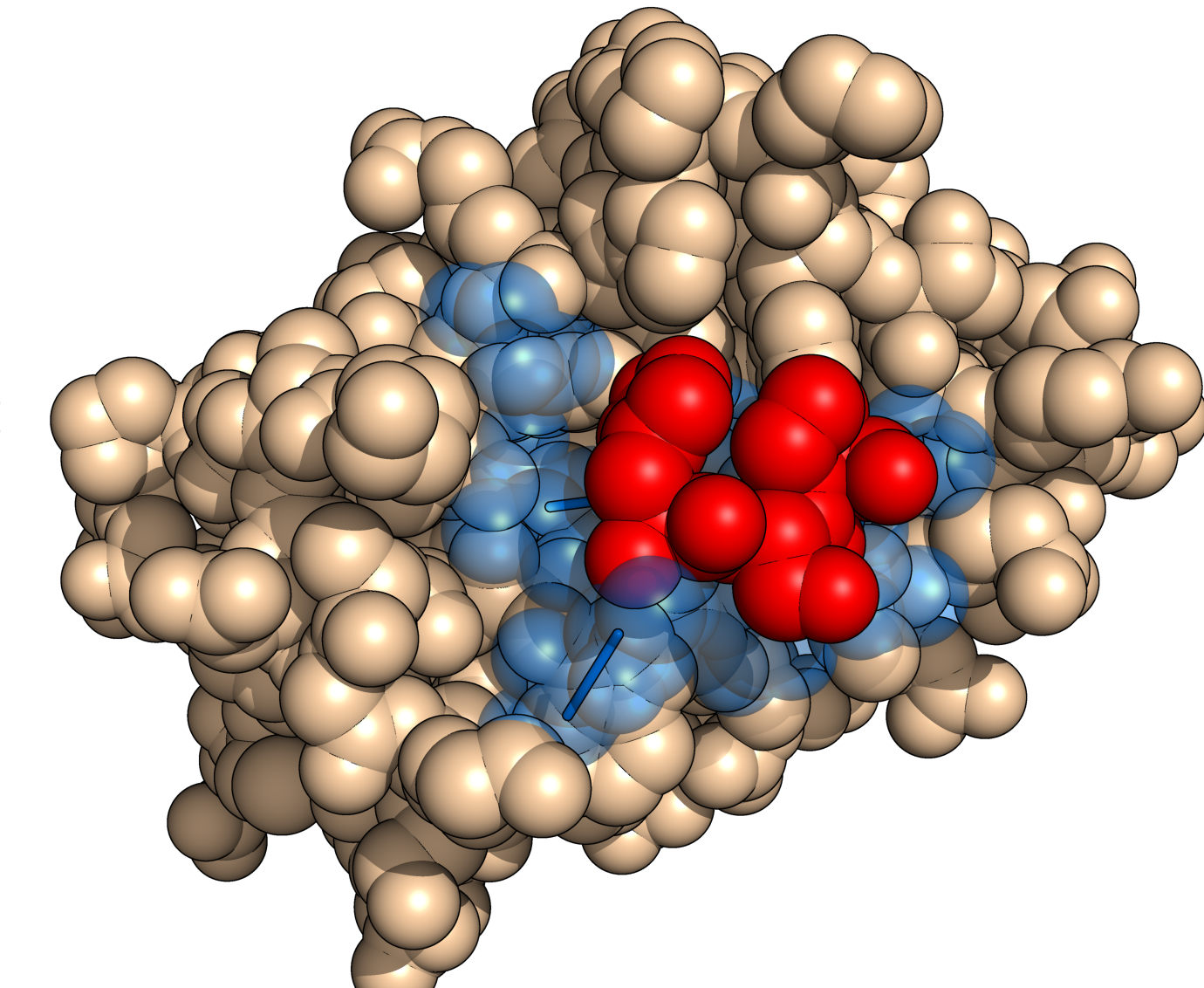

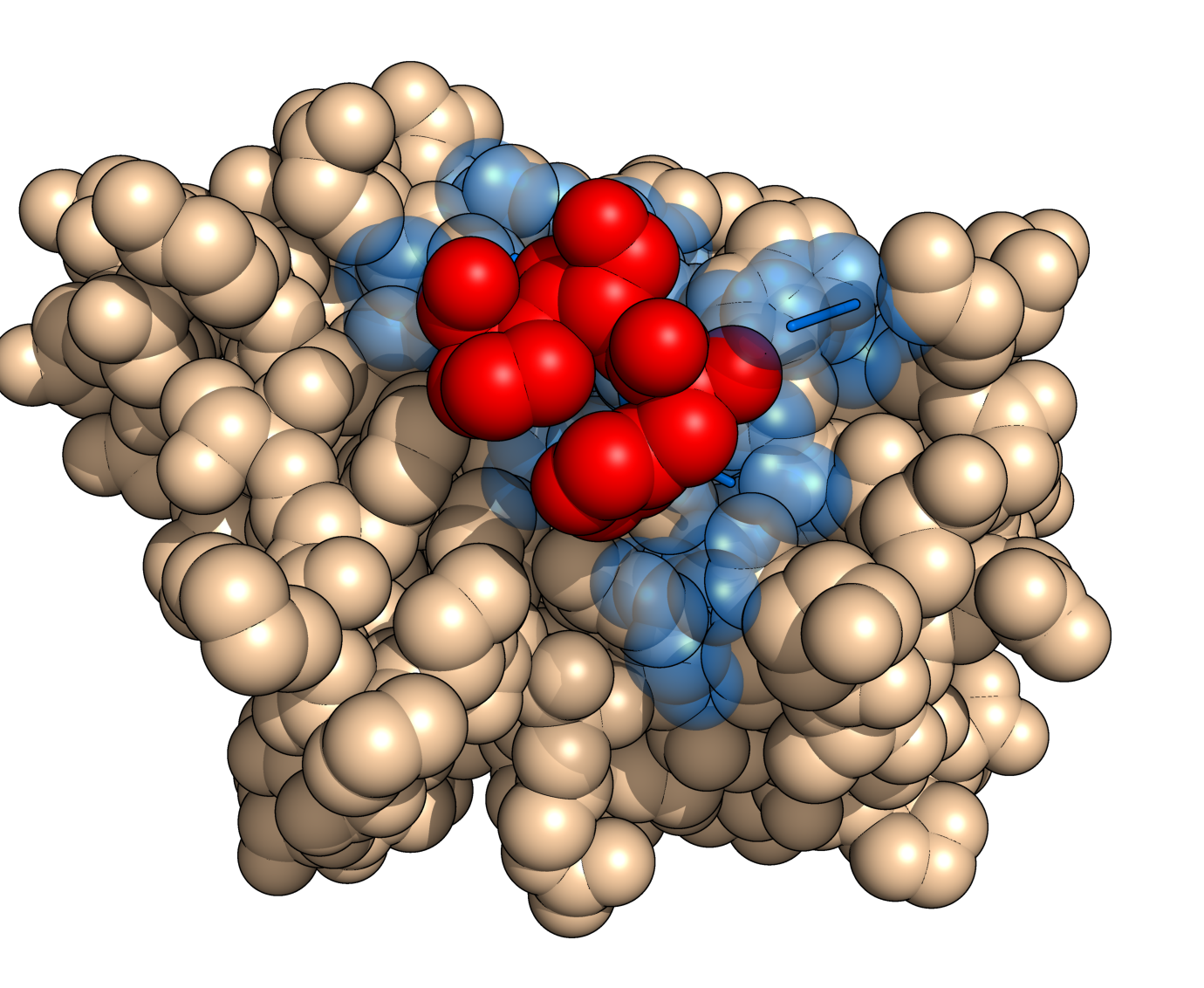

Example of transparent spheres
Example of transparent spheres
These images were made through the following script:
fetch 1ifr; color wheat; hide; show spheres;
color red, i. 506-509;
color marine, byres all within 5 of color red;
set sphere_transparency,0.5,color marine;
