Ribbon color

Overview

Ribbon_color allows one to explicitly state the color to be applied to a ribbon object.

Syntax

# set it to a color
set ribbon_color, color

# examples:
# default auto-cycles the color for each new object
set ribbon_color, marine

# apply green to the ribbon only for object obj01
set ribbon_color, green /obj01

# apply orange to the ribbon only for chain B of object obj01; NB: not fully enabled until version 1.0
set ribbon_color, orange /obj01//B

Examples

•

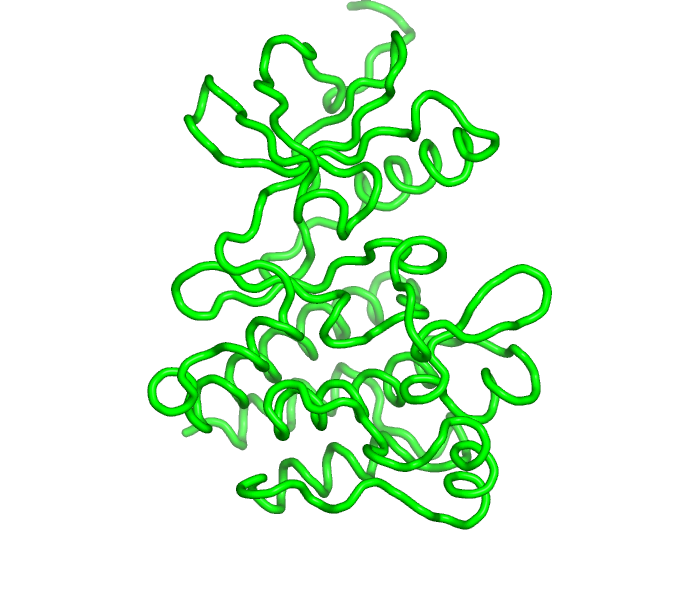

  ribbon_color green

•

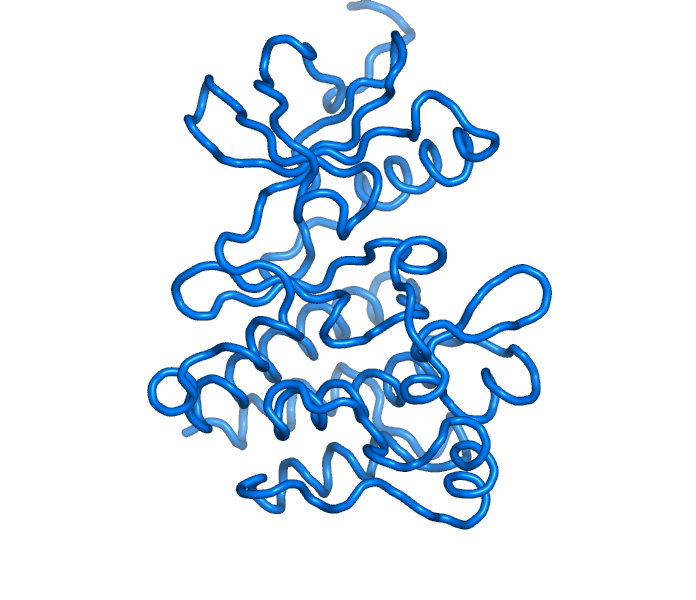

  ribbon_color marine

•

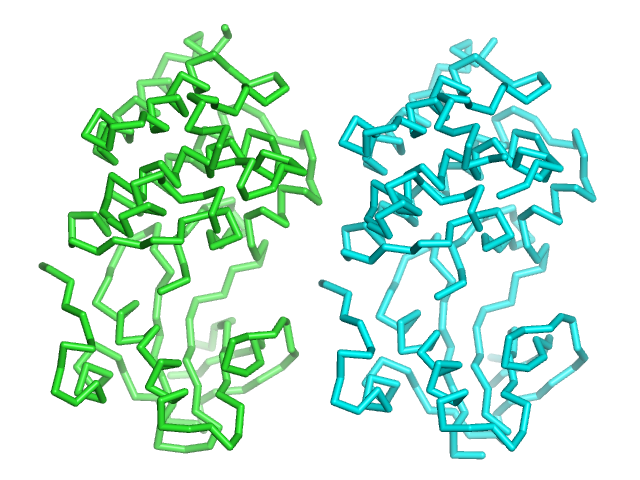

  two chains in same object with different colors

Advanced details

Some notes on general Set syntax (From PyMOL "help set"):

DESCRIPTION

  "set" changes one of the PyMOL state variables,

USAGE

  set name, [,value [,object-or-selection [,state ]]]

  set name = value  # (DEPRECATED)

PYMOL API

  cmd.set ( string name, string value=1,
            string selection=, int state=0,
             int updates=1, quiet=1)

NOTES

  The default behavior (with a blank selection) changes the global
  settings database.  If the selection is 'all', then the settings
  database in all individual objects will be changed.  Likewise, for
  a given object, if state is zero, then the object database will be
  modified.  Otherwise, the settings database for the indicated state
  within the object will be modified.

  If a selection is provided, then all objects in the selection will
  be affected.
