Outline
| Type | PyMOL Plugin |
|---|---|
| Download | outline.py |
| Author(s) | Jarrett Johnson |
| License | BSD-2-Clause |
Outline
As of April 2023, the plugin referred to here will generate outlines given a selection and a list representations to outline with a specified color.
(Pre-2023 using `ImageMagick`):
Previously, user could employ `ImageMagick` to perform outlines by compositing ray-traced image. See information below.
Relevant Settings
Example
Structure of Cytochrome C (PDB 3cyt) shown in surface representation.

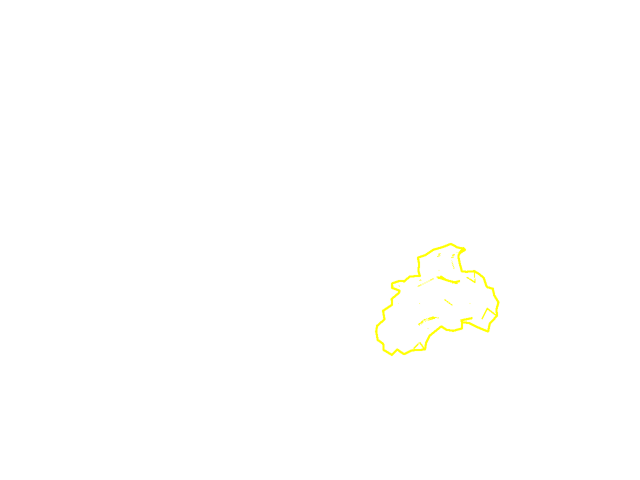

Outline of residues within 2Å of Lys85 on chain I. Notice the image background is transparent.

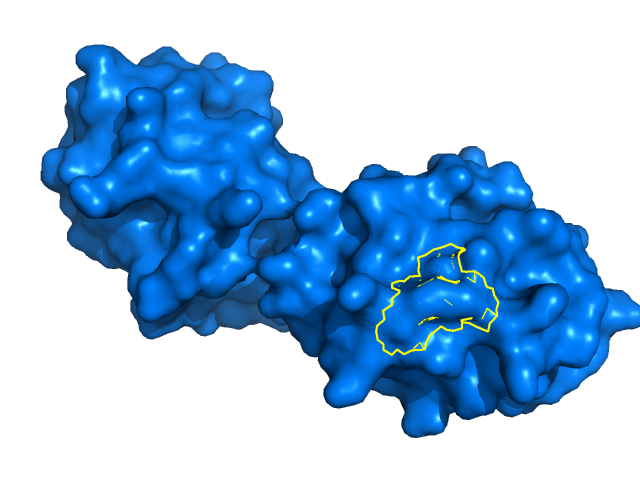

Composite of the previous 2 images.
The same composite image, cleaned up.
The following script was used to generate the first two images from PyMOL.
bg_color white
fetch 3cyt, async=0
as surface
color marine
select outline, br. chain I and resi 85 around 2
set_view (\
0.061975956, -0.950684488, 0.303902954,\
0.703773856, 0.257531703, 0.662103057,\
-0.707715809, 0.172843516, 0.685028315,\
0.000000000, 0.000000000, -152.244812012,\
25.274658203, 8.288025856, 9.110867500,\
51.143974304, 253.345642090, -20.000000000 )
png base.png, ray=1
hide everything
as surface, outline
set ray_trace_mode, 2
set ray_trace_color, yellow
set ray_opaque_background, 0
png overlay.png, ray=1
In an image editing program, position overlay.png in a layer exactly overlapping base.png. The extra outline lines can also (optionally) be cleaned up by carefully erasing them using the graphics program's eraser tool.
Automation
If you need to have a fully automated solution, you can use ImageMagick or GraphicMagick to do this. If you use ImageMagick in a Unix box, you can type this command on the terminal:
composite -gravity center overlay.png base.png composite.png
See this page on ImageMagick for more information. If you need to use it with GraphicMagick or in Windows or Mac, search for the relevant guidances.
If you need to erase the lines inside the border, you can use the following command to do it. The `color` variable is the desired final output color of the border; change the `width` variable to change the border's thickness.
infile="overlay.png"
outfile="overlay_cleaned.png"
color="black"
width=3
w2=`convert $infile -format "%[fx:w-2]" info:`
h2=`convert $infile -format "%[fx:h-2]" info:`
convert $infile -background white -flatten -fill black +opaque white -bordercolor none -border 2 \
-fill none -draw "matte 2,2 floodfill matte $w2,2 floodfill matte $w2,$h2 floodfill matte 2,$h2 floodfill" \
-fill white +opaque none -fill black -opaque none \
-alpha off -morphology edge octagon:$width \
-channel rgba -fill none +opaque white -fill $color -opaque white -shave 2x2 $outfile
See this thread in ImageMagick forum for more detail.
