Geo Measures Plugin

From PyMOLWiki
Jump to: navigation, search
Type PyMOL Plugin
Author(s) Luciano Porto Kagami, Gustavo Machado das Neves, Luís Fernando Saraiva Macedo Timmers, Rafael Andrade Caceres and Vera Lucia Eifler-Lima
License GNU General Public License v3.0

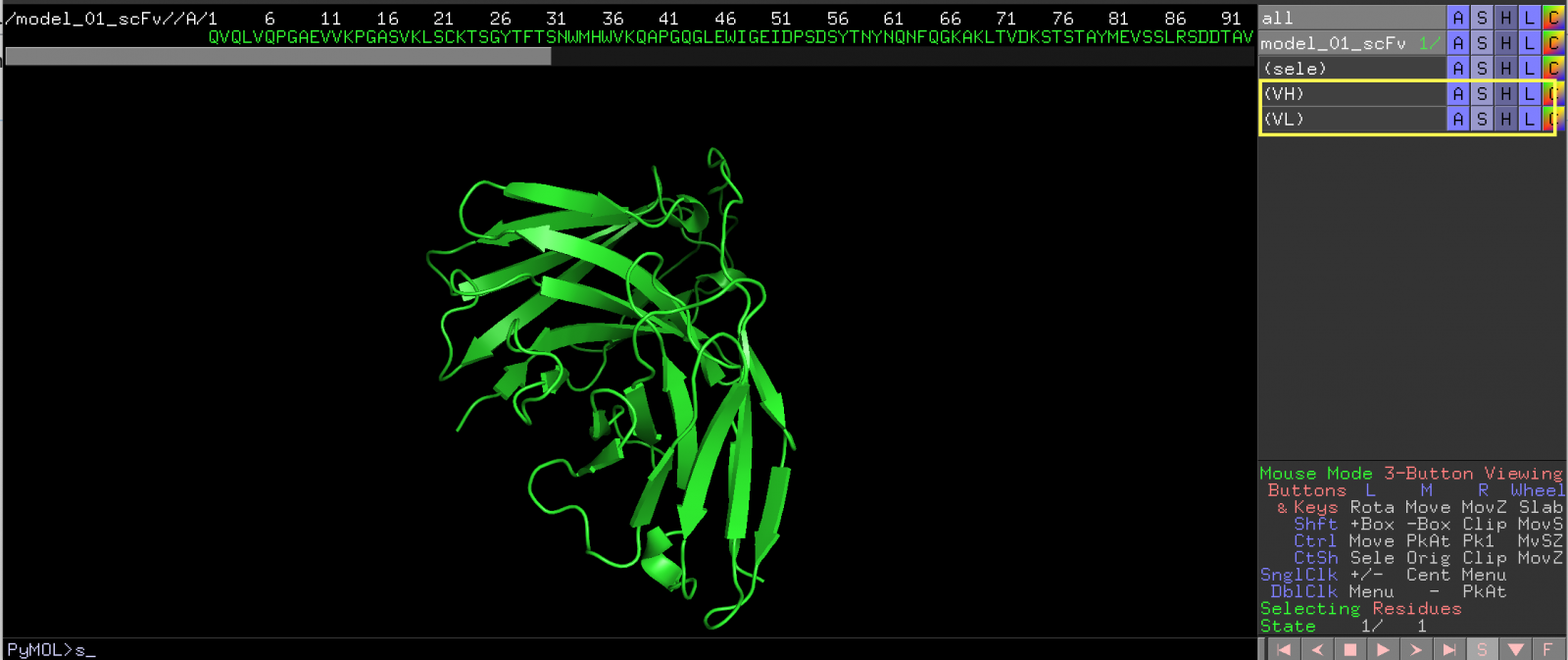

The Geo Measures Plugin can carry out geometric analysis on protein structures.In addition, it makes other trajectory analyzes such as Probability Density Function (PDF), Root Mean Square Deviation (RMSD), Radius of Gyration (RG), Free Energy Landscape (FEL), Principal Component Analysis (PCA), Ramachandran map, Root Mean Square Fluctuation (RMSF), Define Secondary Structure of Proteins (DSSP), and Modevectors. Altogether there are 14 tools, which can be easily used by the graphical interface.

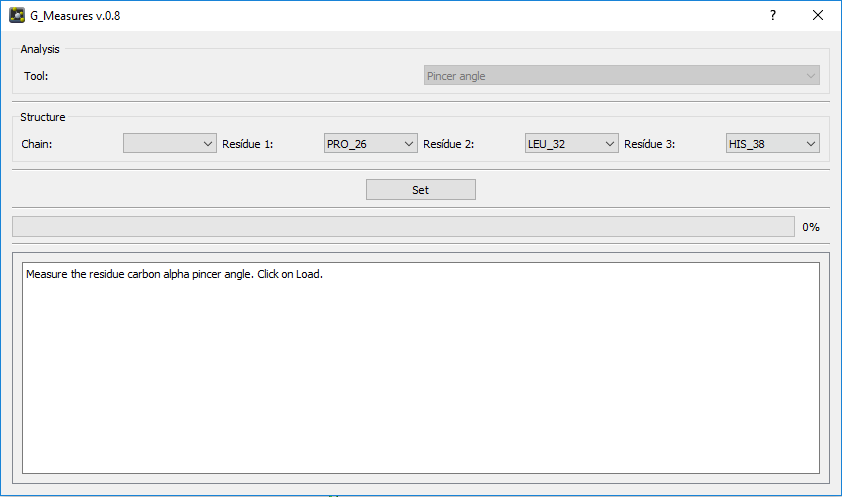

Geo-Measures Graphical User Interface

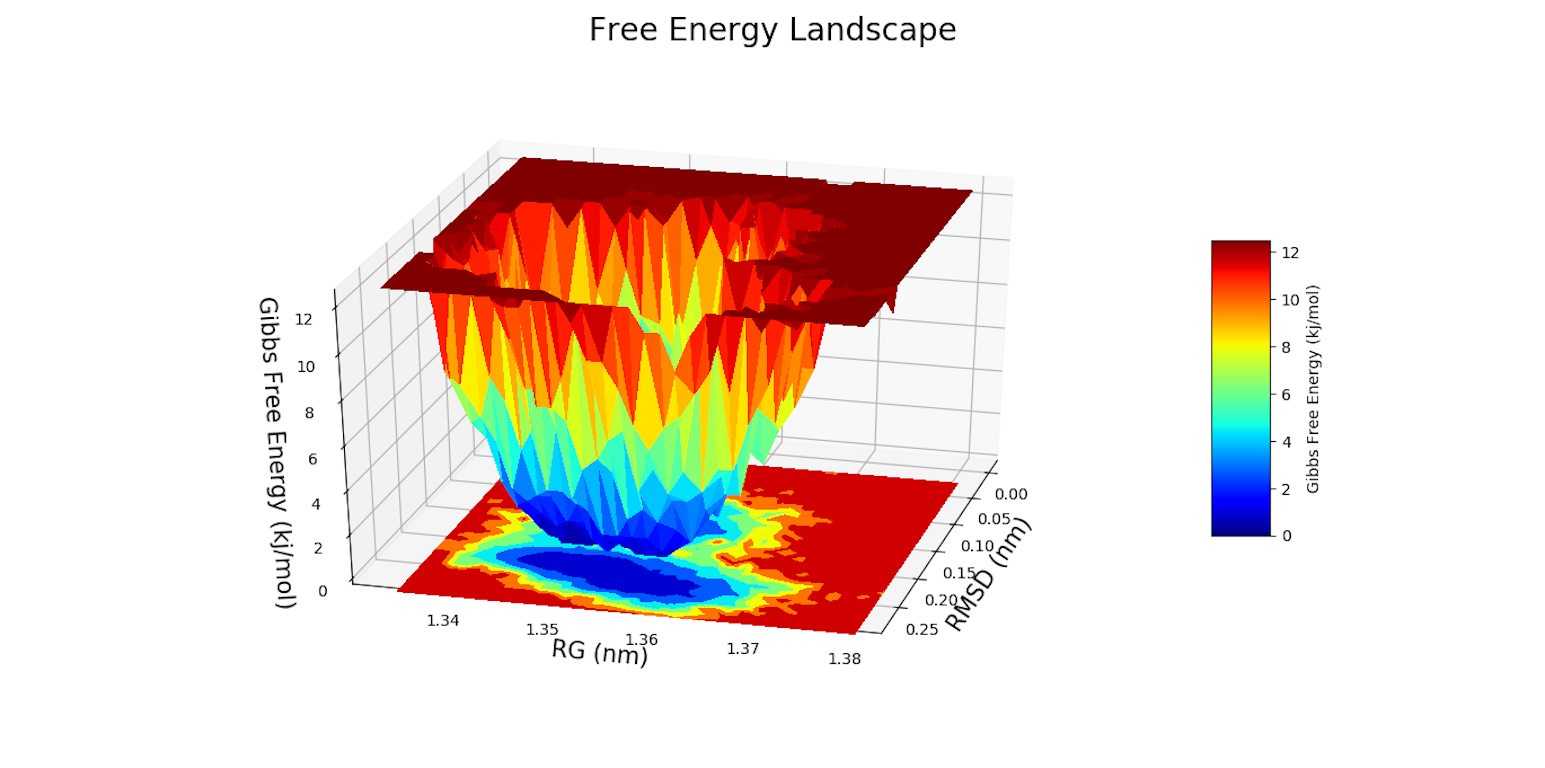

Free Energy Landscape

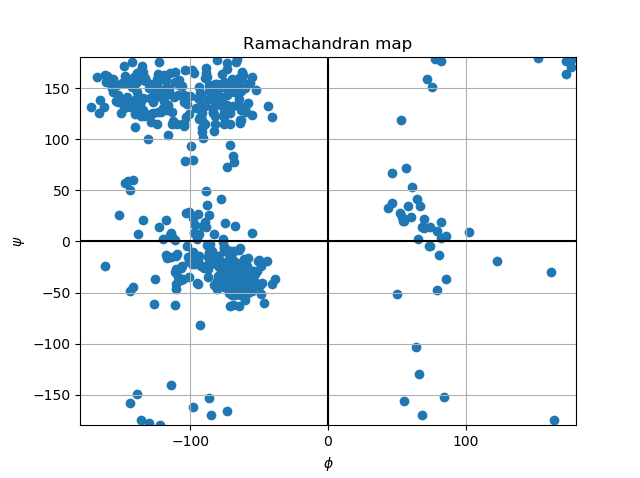

Ramachandran Plot

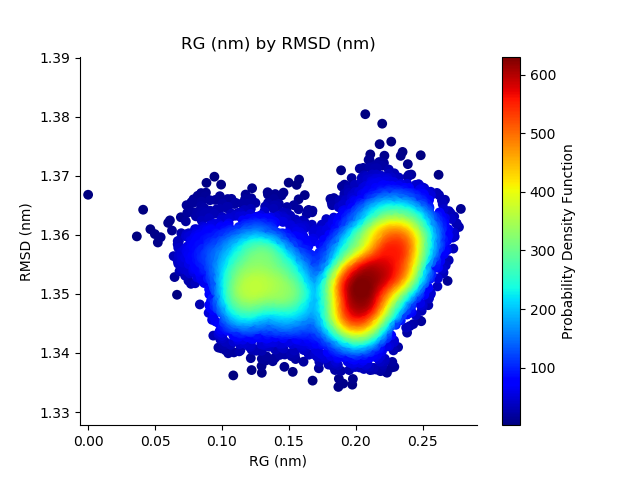

Probability Density Function

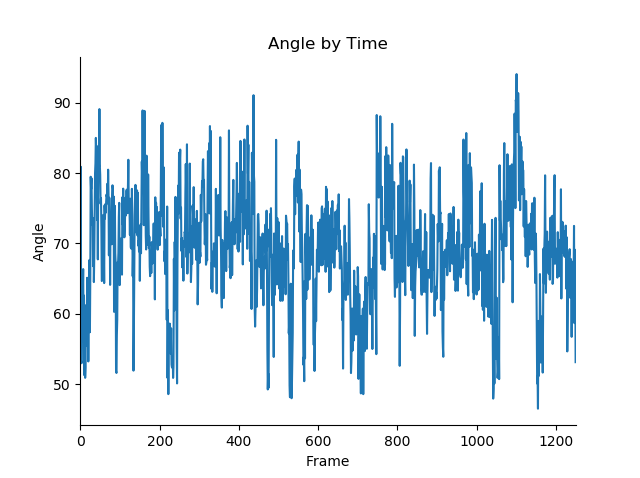

Pincer Angle

Video Tutorial



PyMOL version higher than 2.0.

It is highly recommended to install PyMOL using the Ananconda3 package [1].

You need to install python packages.

To do this use the command:

pip install pandas matplotlib scipy mdtraj sklearn

Install using the PyMOL Plugin Manager


Kagami LP, das Neves GM, Timmers LFSM, Caceres RA,Eifler-Lima VL, Geo-Measures: A PyMOL plugin for protein structure ensembles analysis,Computational Biology and Chemistry(2020)

Universidade Federal do Rio Grande do Sul - Laboratório de Síntese Orgânica Medicinal - LaSOM
