CGO Shapes

A Compiled Graphics Object (CGO) is a Python list of floating point numbers, which is compiled by PyMOL into an geometric representation and associated with a given state. CGOs can be created in the PyMOL scene with the Load_CGO command.

CGO Commands

Based on an old version of the User Manual:

Lowercase names below should be replaced with floating-point numbers. Generally, the TRIANGLE primitive should only be used only as a last restore since it is much less effective to render than using a series of vertices with a BEGIN/END group.

BEGIN, { POINTS | LINES | LINE_LOOP | LINE_STRIP | TRIANGLES | TRIANGLE_STRIP | TRIANGLE_FAN },

VERTEX, x,  y,  z,

COLOR,  red, green, blue,

NORMAL, normal-x, normal-y,  normal-z,

END,

LINEWIDTH, line-width,

WIDTHSCALE, width-scale,   # for ray-tracing

SPHERE, x, y, z,  radius    # uses the current color


[[Category:CGO]]

CYLINDER, x1, y1, z1, x2, y2, z2, radius,
          red1, green1, blue1, red2, green2, blue2,

TRIANGLE,  x1, y1, z1,
           x2, y2, z2,
           x3, y3, z3,
           normal-x1, normal-y1, normal-z1,
           normal-x2, normal-y2, normal-z2,
           normal-x3, normal-y3, normal-z3,
           red1, green1, blue1,
           red2, green2, blue2,
           red3, green3, blue3,

CONE,      x1, y1, z1,
           x2, y2, z2,
           r1, r2,
           red1, green1, blue1,
           red2, green2, blue2,
           cap1, cap2   # should the ends be solid (1) or open (0)?

EXAMPLES

from pymol import cgo

# Unit sphere at the origin
plain_sphere = [cgo.SPHERE, 0, 0, 0, 1]
cmd.load_cgo(plain_sphere, "plain_sphere")

# Red unit sphere at (3, 4, 5)
red_sphere = [cgo.COLOR, 1, 0, 0, cgo.SPHERE, 3, 4, 5, 1]
cmd.load_cgo(red_sphere, "red_sphere")

# Narrow yellow cylinder
pos0 = [-1, -1, -1]
pos1 = [-1, -1, 1]
r = 0.1
yellow = [1, 1, 0]
yellow_cyl = [cgo.CYLINDER, *pos0, *pos1, r, *yellow, *yellow]
cmd.load_cgo(yellow_cyl, "yellow_cylinder")

# Magenta and green cone, open on one endray
pos0 = [2, 2, 2]
pos1 = [3, 3, 3]
radii = [1, 0.5]
color0 = [1, 0, 1]
color1 = [0, 1, 0]
caps = [0, 1]
cone = [cgo.CONE] + pos0 + pos1 + radii + color0 + color1 + caps
cmd.load_cgo(cone, "cone")

# adjust the camera position
set_view (\
     0.022470249,    0.398223877,   -0.917012811,\
     0.188309744,    0.899140060,    0.395077318,\
     0.981853366,   -0.181560174,   -0.054785311,\
     0.000002960,   -0.000002829,  -28.313688278,\
     1.387665749,    1.797374249,    2.392468214,\
    21.653684616,   34.973686218,  -20.000000000 )

# force a black background and save a PNG image
set ray_opaque_background, 1
png cgo_examples.png, ray=1

•

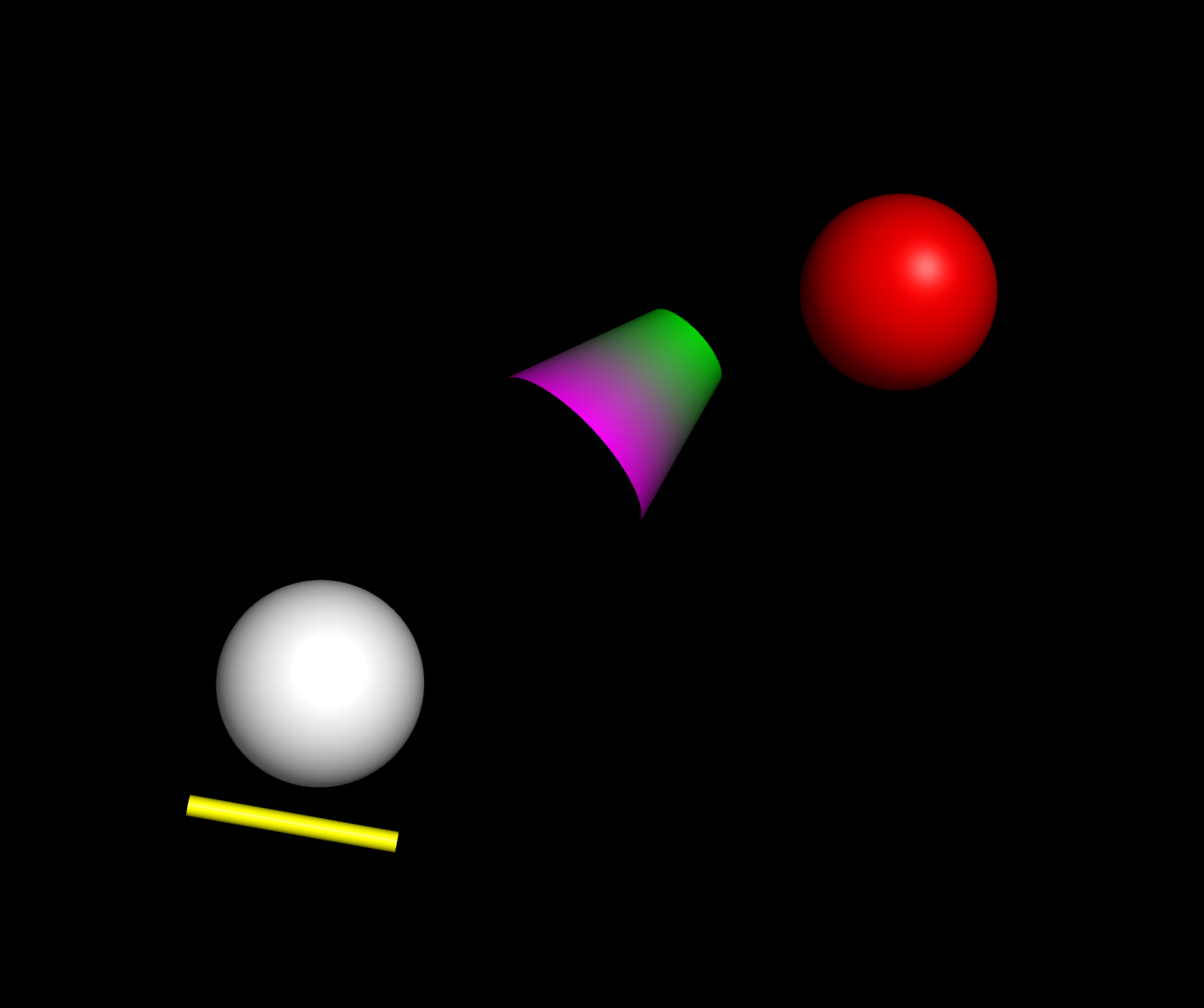

  Figure produced by the above example code.
