Distance

Distance

distance creates a new distance object between two selections. It will display all distances within the cutoff. Distance is also used to make hydrogen bonds. Calling distance without arguments will show distances between selections (pk1) and (pk1), which can be set in editing mode or using the PkAt mouse action (usually CTRL-middle-click). Note: For interactive use, the measurement wizard (from the PyMOL menu) makes measuring distances easier than using the distance command. If you want to measure distance and avoid creating a distance object, use Get Distance or Distancetoatom.

Usage

distance [ name [, selection1 [, selection2 [, cutoff [, mode ]]]]]

name

string: name of the distance object to create

selection1

string: first atom selection

selection2

string: second atom selection

cutoff

float: longest distance to show

mode

0: all interatomic distances

1: only bond distances

2: only show polar contact distances

3: like mode=0, but use distance_exclusion setting

4: distance between centroids (new in 1.8.2)

PYMOL API

cmd.distance( string name, string selection1, string selection2,
              float cutoff, int mode )
   # returns the average distance between all atoms/frames

EXAMPLES

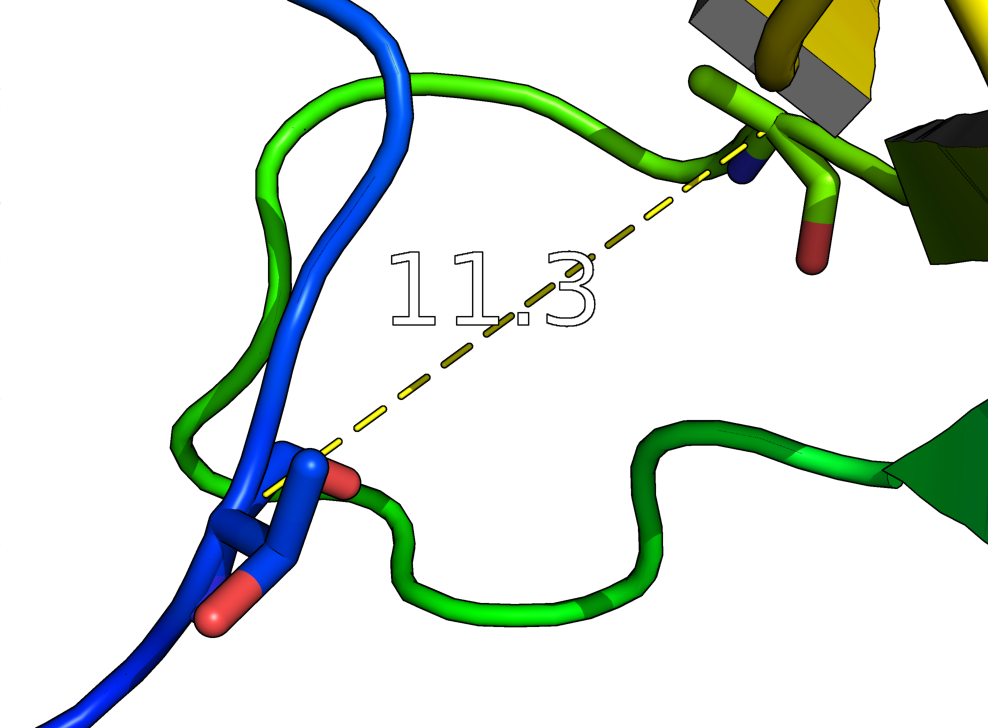

• Get and show the distance from residue 10's alpha carbon to residue 40's alpha carbon in 1ESR:

# make the first residue 0.
zero_residues 1esr, 0
distance i. 10 and n . CA, i. 40 and n. CA

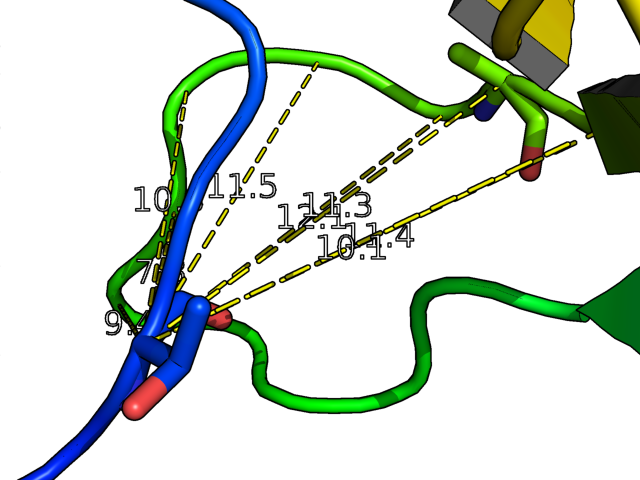

• Get and show the distance from residue 10's alpha carbon to residue 35-42's alpha carbon in 1ESR:

# make the first residue 0.
zero_residues 1esr, 0
distance i. 10 and n . CA, i. 35-42 and n. CA

• This neat example shows how to create distance measurements from an atom in a molecule to all other atoms in the molecule (since PyMol supports wildcards).

 cmd.distance("(/mol1///1/C)","(/mol1///2/C*)")

or written without the PyMolScript code,

dist /mol1///1/C, /mol1///2/C*

• Create multiple distance objects

for at1 in cmd.index("resi 10"): \
   for at2 in cmd.index("resi 11"): \
       cmd.distance(None, "%s`%d"%at1, "%s`%d"%at2)

distance (selection1), (selection2)

# example
dist i. 158 and n. CA, i. 160 and n. CA

distance mydist, 14/CA, 29/CA
distance hbonds, all, all, 3.2, mode=2

See Also

• Get Distance # Avoid creating an object
• Distancetoatom # Automated script for distances to a point
• Measure_Distance # basic script
• Lines
