|Author(s)||Sean M. Law|
|This code has been put under version control in the project Pymol-script-repo|
modevectors.py is a PyMol script that was originally written to visualize results obtained from Normal Mode Analysis (NMA) by drawing arrows or vectors from a starting structure to a final structure. However, this script can be used to visualize the direction of motion between two specified states (e.g. targeted MD, comparing open and closed structures, etc). The strength of this script is that the arrows are highly customizable with numerous options to choose from (see script below). It is important to note that the two states MUST be identical except for the X, Y, and Z coordinates. That is, you cannot draw vectors between homologous structures. The default settings sets the background to white and displays the arrows along with the first object frame (in cartoon representation).
Note: Ray tracing these CGO arrows appears to be a memory intensive process so please save a session before ray tracing and use "pymol -qc" where necessary. If anybody can come up with a method to improve this please e-mail me (see address in script).
Update: A new way of drawing the arrows has been implemented for PyMOL v.1.1 and has been updated in this code (which automatically detects the version that you are using). The new method uses the built in cone primitive rather than concentric circles decreasing in size. Thus, the new method is much less memory intensive and is a significant improvement over the old method. Additionally, you may want to turn off ray shadow depending on the scene that you are viewing as shadows can be confusing to others when seen in publications.
load the script using the run command
modevectors first_obj_frame, last_obj_frame [,first_state=1 [,last_state=1 [,outname=modevectors \ [,head=1.0 [,tail=0.3 \[,head_length=1.5 [,headrgb=(1.0,1.0,1.0) [,tailrgb=(1.0,1.0,1.0) [,cutoff=4.0 [,skip=0 [,cut=0.5 [,atom=CA [,stat=show [,factor=1.0 [,notail=0]]]]]]]]]]]]]]
Please see the script comments for further custom options. Once the script completes, it will generate a new object called "modevectors" (which can be changed through the options).
modevectors 1E3M, 1W7A modevectors 1E3M, 1W7A, outname="arrows" modevectors 1E3M, 1W7A, atom="P"

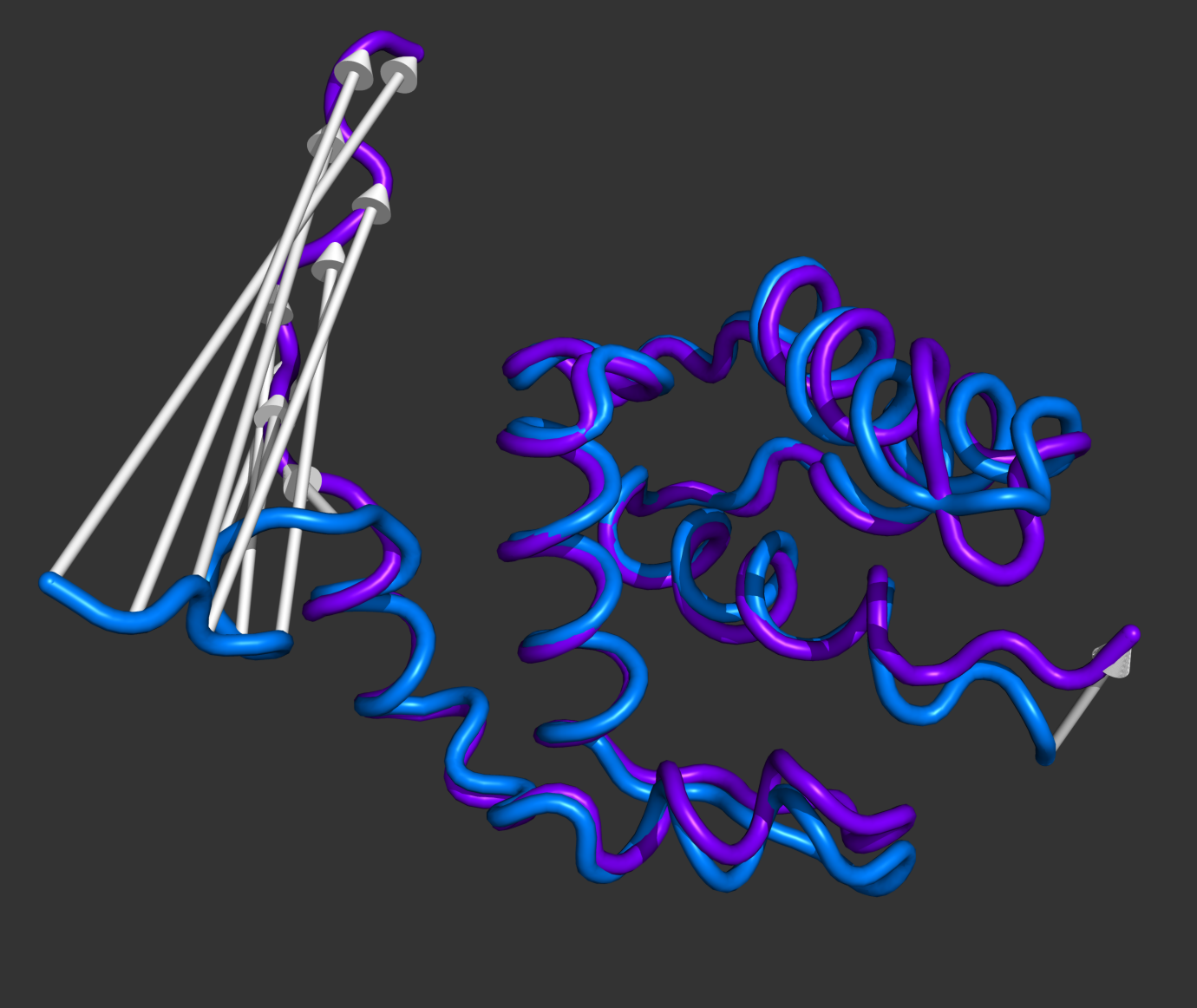

Copy/paste the following code to see an example of modevectors. This uses a multistate protein and the arrows are connected between the first and last states.
import modevectors # fetch the PDBs from pdb.org fetch 1c3y, finish=1, multiplex=0, async=0 # separate the first and last states of the NMR ensemble to individual objects split_states 1c3y, 1, 1 split_states 1c3y, 23, 23 hide # run the modevectors code modevectors 1c3y_0001, 1c3y_0023 # just setup a nice representation as cartoon, 1c3y_0001 or 1c3y_0023 show cgo, modevectors color marine, 1c3y_0001 color purpleblue, 1c3y_0023
The following set of examples will illustrate the power of each optional argument. Each example should be compared to the default figure in the table below.

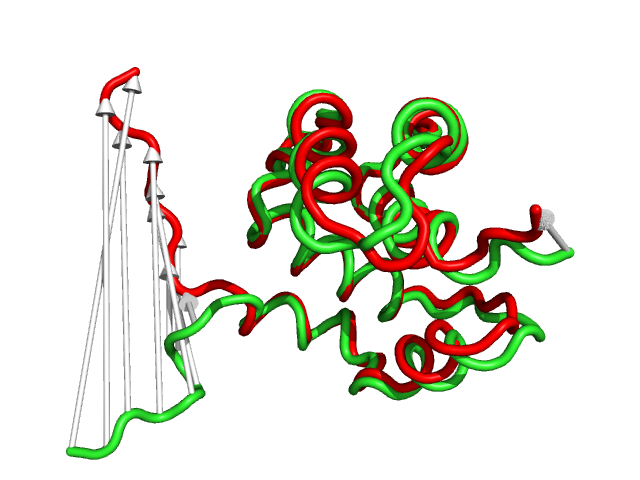

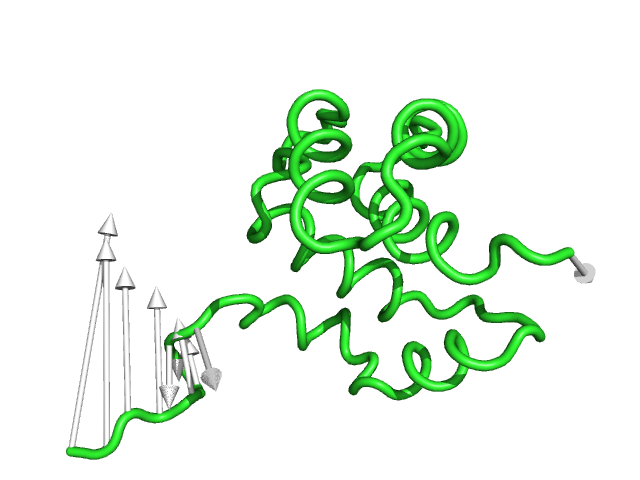

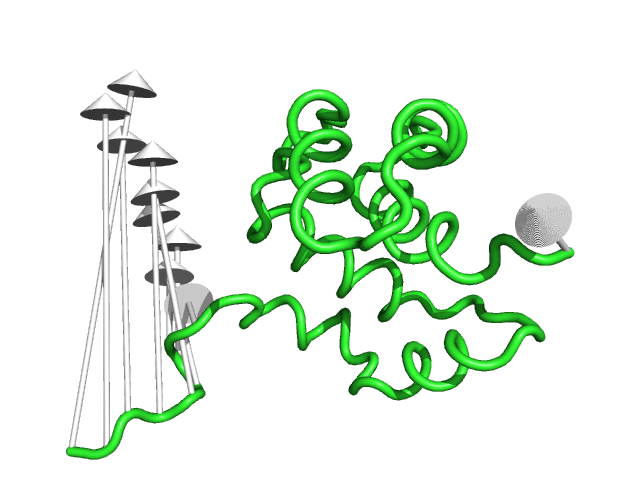

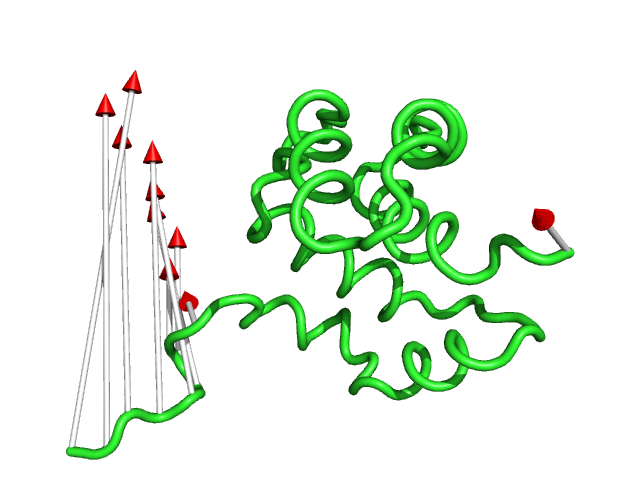

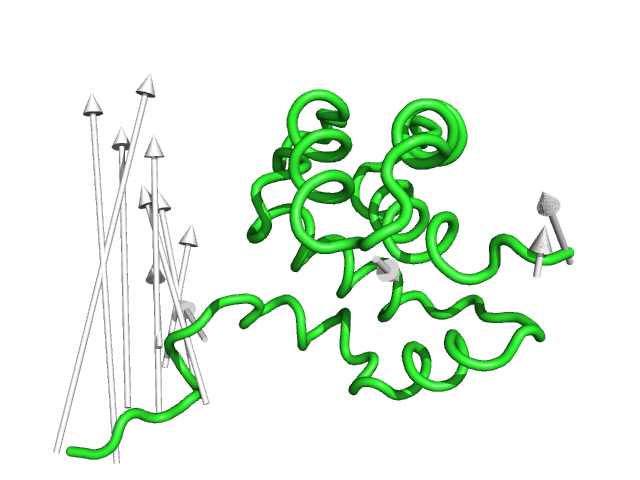

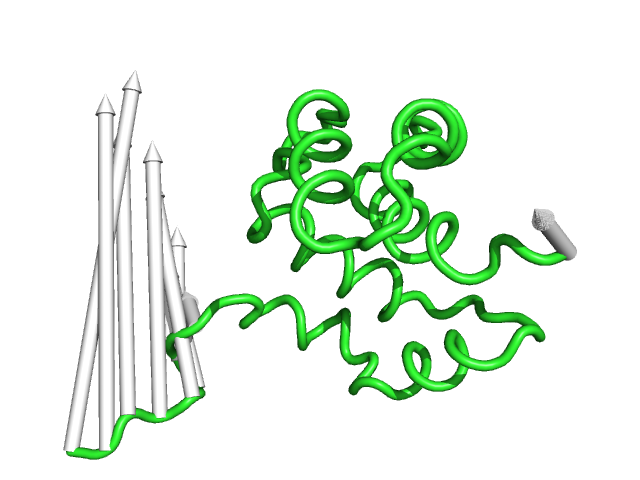

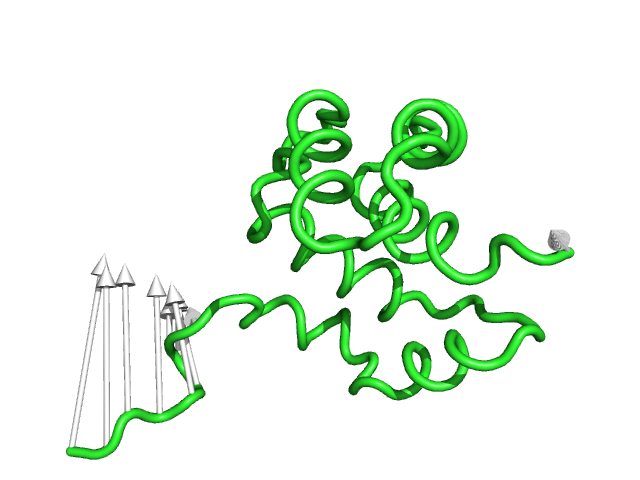

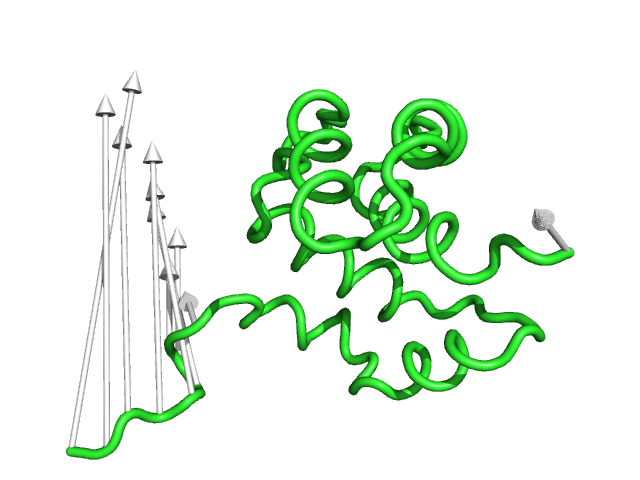

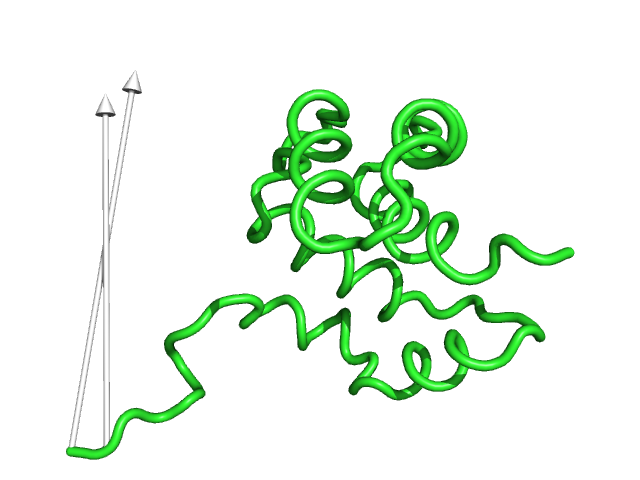

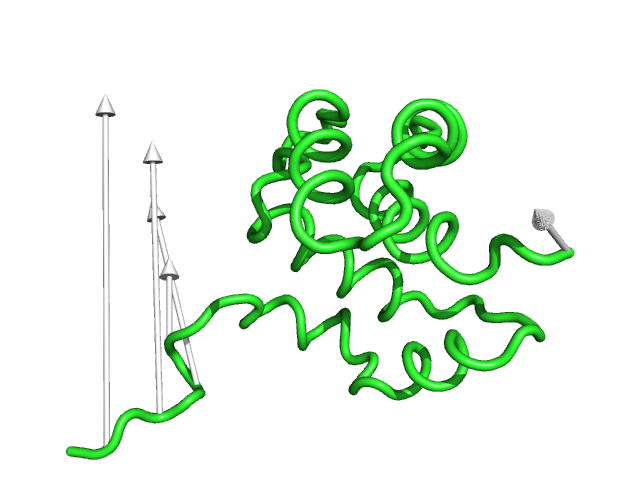

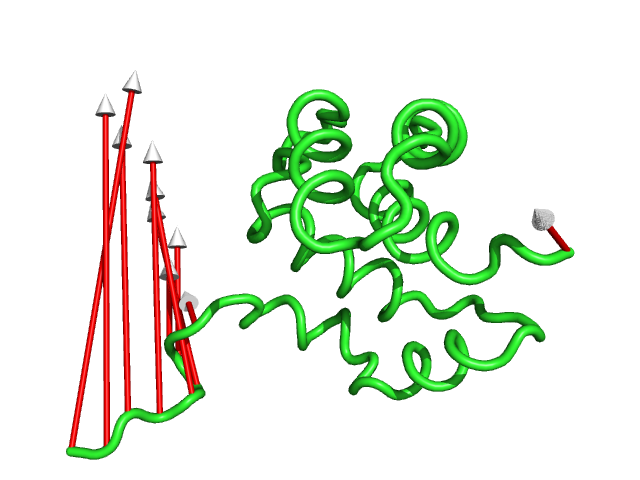

reinitialize import modevectors fetch 1c3y, async=0 split_states 1c3y, 1, 1 split_states 1c3y, 23, 23 hide #This is the default setting (Fig.1) modevectors 1c3y_0001, 1c3y_0023 #This is shows that the direction of the arrows is drawn from the 1c3y_0001 towards 1c3y_0023 (Fig.2) show cartoon, 1c3y_0023 color red, 1c3y_0023 #This controls the base radius of the cone/arrow head in angstroms (Fig.3) modevectors 1c3y_0001, 1c3y_0023, head=2.5 #This controls the radius of the cylinders/arrow tails in angstroms (Fig.4) modevectors 1c3y_0001, 1c3y_0023, tail=0.75 #This controls the length of the cone/arrow head in angstroms (Fig.5) #Note that this option does NOT increase the vector length but simply changes the tail length modevectors 1c3y_0001, 1c3y_0023, head_length=3.0 #This controls the colour of the cone/arrow head using RGB values (Fig.6) modevectors 1c3y_0001, 1c3y_0023, headrgb=(1.0,0.0,0.0) #This controls the colour of the cylinder/arrow tails using RGB values (Fig.7) modevectors 1c3y_0001, 1c3y_0023, tailrgb=(1.0,0.0,0.0) #This controls the which vectors to show based on a specific cutoff value in angstroms. Vector lengths that are less #than the cutoff value will not be displayed (Fig.8) modevectors 1c3y_0001, 1c3y_0023, cutoff=30.0 #This controls how many vectors to skip (integer value) and is useful when there are too many vectors showing. #Skip=1 will show every other arrow (Fig.9) modevectors 1c3y_0001, 1c3y_0023, skip=1 #This controls how much to cut from each vector (in angstroms). Note that arrows will point in the opposite directions #when too much is cutoff (resulting in a negative vector length) (Fig.10) and should be used with caution! modevectors 1c3y_0001, 1c3y_0023, cut=15.0 #This controls which atom to draw a vector from (Fig.11). Note that this is case-sensitive and is really only useful #when atom=CA or when atom=P (for DNA backbones) modevectors 1c3y_0001, 1c3y_0023, atom=CB #This controls how much to multiple the length of each vector by (percentage increase/decrease) (Fig.12) #This example halves the length of each vector (50%) modevectors 1c3y_0001, 1c3y_0023, factor=0.5 #This hides the statistics which count atoms skipped, atoms counted (number of arrows showing), and number of atoms #that did not meet the cutoff and are not shown modevectors 1c3y_0001, 1c3y_0023, stat=hide #This example shows multiple options being used (Fig.13) modevectors 1c3y_0001, 1c3y_0023, head=2.0, tail=1.0, head_length=2.0, headrgb=(1.0,0.0,0.0), tailrgb=(0.0,0.0,1.0), cutoff=0.0,skip=0,cut=0,atom=CA,factor=0.8 #Finally, this example hides all arrow tails and only uses arrow heads via the notail option(No Figure) modevectors 1c3y_0001, 1c3y_0023, head=2.0, cutoff=0.0,skip=0,cut=0,atom=CA,factor=0.8, notail=1
