BiologicalUnit

From PyMOLWiki
Jump to: navigation, search

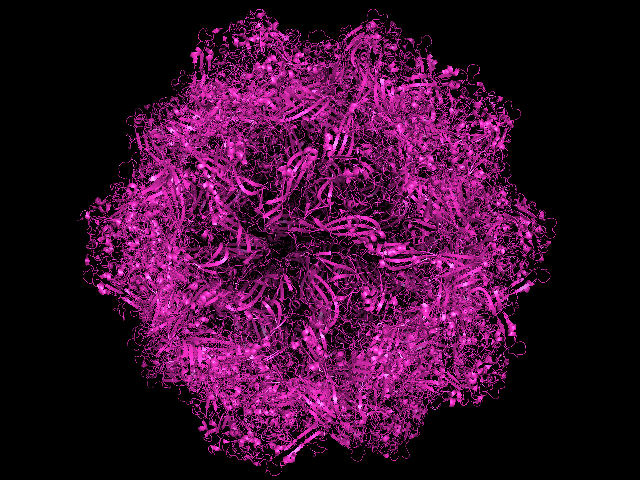

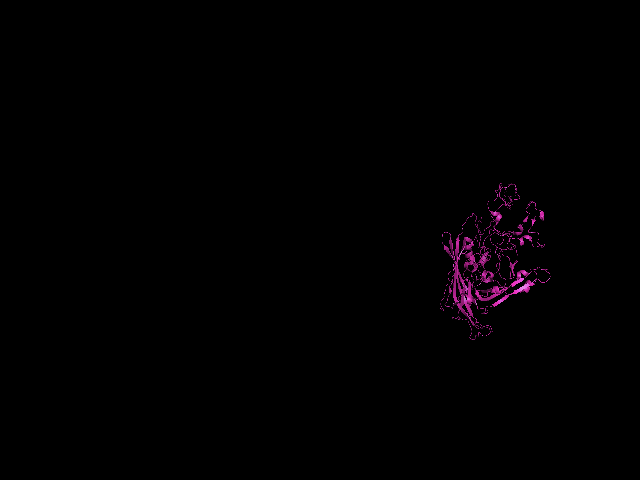

This script can be used to re-create biological units for proteins. (This was created as a workaround of PyMOL's semi-functioning Symexp command.) It's also a fun script to play with for learning about symmetry.

Contents

Usage

load /path/to/some/pdbFile.pdb
symMat = readSymmetry("/path/to/some/pdbFile.pdb","pdbFile")
biologicalUnit("mates", "pdbFile", symMat)

The Code

#
# Jason Vertrees <Jason-dot-Vertrees-at-schrodinger_dot_com>, 2010.
#
import pymol
from pymol import cmd

def readSymmetry(inFile, verbose=None):
  """
  This function will read "inFile" and glean the
  symmetry operations, if any, from it.

  PARAMS
    inFile
      (string) path to PDB file

    verbose
      (boolean) if verbose is not None, print more

  RETURNS
    matrix
      Array of lists.  One 16-element list per symmetry operation.  Feed this matrix
      into manualSymExp in order to make the other symmetry mates in the biological unit
  """
  # a remark-350 lines has:
  # REMARK 350 BIOMTn TAGn X Y Z Tx
  REM, TAG, BIOMT, OPNO, X, Y, Z, TX = range(8)

  thePDB = open(inFile, 'rb').readlines()

  matrices = []
  curTrans = -1

  # The transformation is,
  # output = U*input + Tx

  for l in thePDB:
    tokens = l.split()
    if len(tokens)!=8:
      continue
    if tokens[REM]=="REMARK" and tokens[TAG]=="350" and tokens[BIOMT].startswith("BIOMT"):
      if tokens[OPNO]!=curTrans:
        # new transformation matrix
        matrices.append([])

      matrices[-1].append( map( lambda s: float(s), tokens[X:]))
      curTrans = tokens[OPNO]

  if verbose!=None:
    print "Found %s symmetry operators in %s." % (len(matrices), inFile)
  return matrices


def biologicalUnit(prefix, objSel, matrices ):
  """
  Manually expands the object in "objSel" by the symmetry operations provided in "matrices" and
  prefixes the new objects with "prefix".

  PARAMS
    prefix
      (string) prefix name for new objects

    objSel
      (string) name of object to expand

    matrices
      (list of 16-element lists) array of matrices from readSymmetry

    RETUNRS
      None

    SIDE EFFECTS
      Creates N new obects each rotated and translated according to the symmetry operators, where N
      equals len(matrices).
  """
  for m in matrices:
    n = cmd.get_unused_name(prefix)
    cmd.create(n, objSel)
    s1 = "%s + (x*%s + y*%s + z*%s)" % (m[0][3], m[0][0], m[0][1], m[0][2])
    s2 = "%s + (x*%s + y*%s + z*%s)" % (m[1][3], m[1][0], m[1][1], m[1][2])
    s3 = "%s + (x*%s + y*%s + z*%s)" % (m[2][3], m[2][0], m[2][1], m[2][2])
    cmd.alter_state(1, n, "(x,y,z) = (%s, %s, %s)" % (s1, s2, s3) )

Notes

This is slow compared to Symexp; use the above for learning, playing and when Symexp doesn't work as advertised.
